R45, R65, R65LS (1981), R80ST.

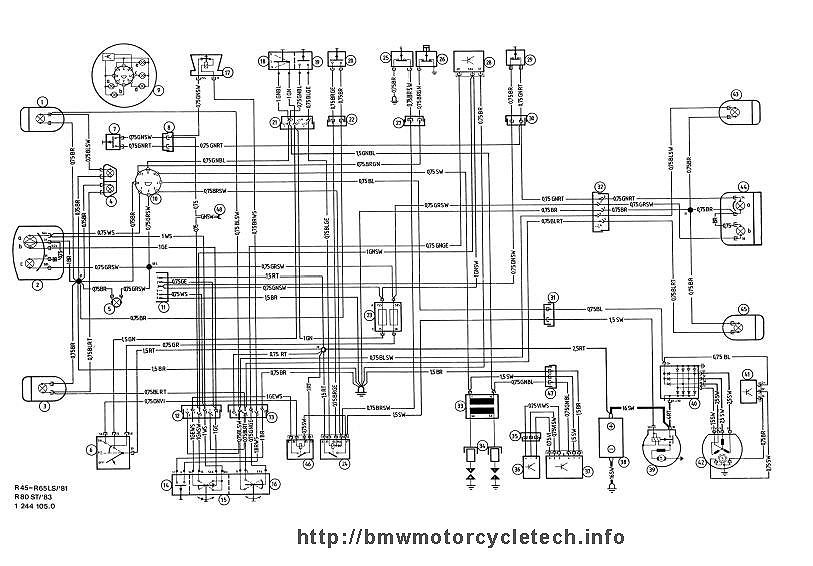

Electrical schematics & block diagrams

SEVERAL on this page!!

https://bmwmotorcycletech.info/R65Schematic.htm
38H
© Copyright 2020, R. Fleischer

In addition to what is on the page you are looking at, here are .pdf versions of the 1981 R45 and R65, and R80ST:
BMW 81 R65 Wiring Diagram 1-16-09 (1).pdf

Euro-R45-R65-R80ST.pdf for EURO version.

Below, another version:

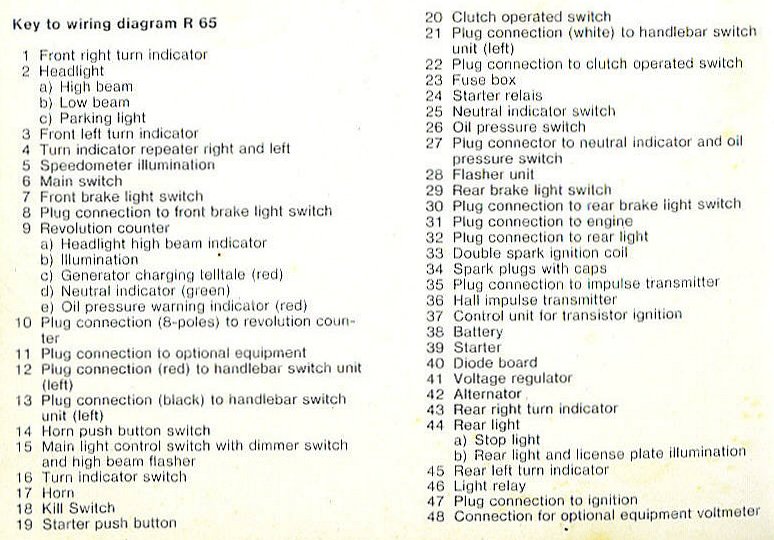

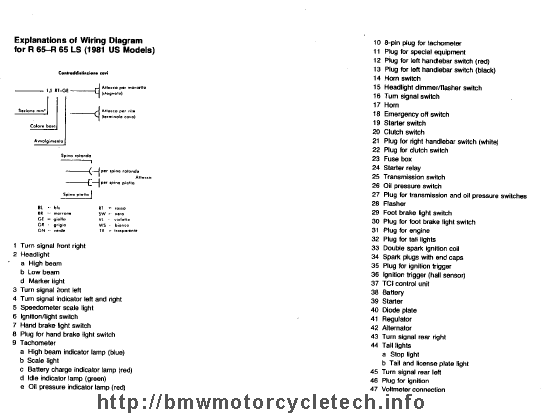

Below is a similar list of item functions, but a different version:

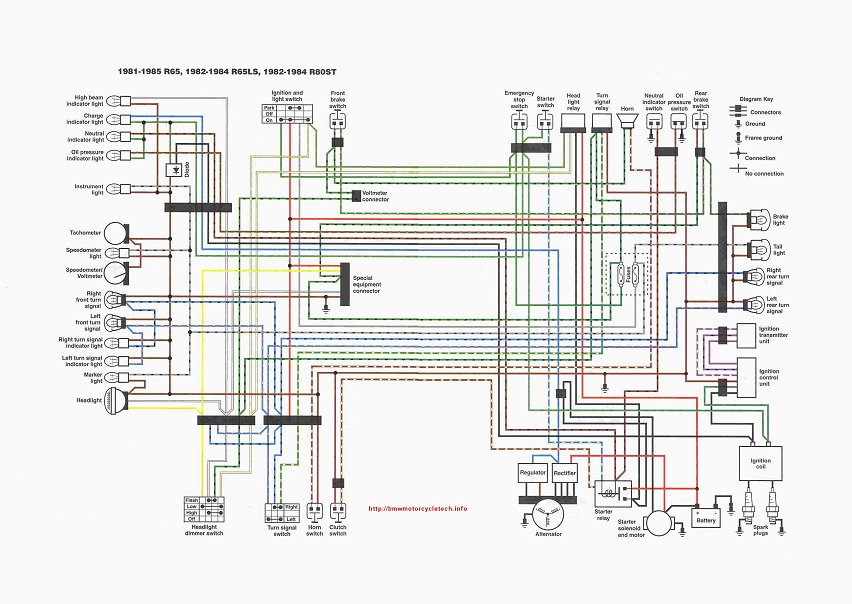

Below is a colored wires version of the diagram, quite differently laid out than the above version:
